Real project work

Fabrication, Machinery and Plant Installations

Explore photographs from actual machinery fabrication, pollution-control equipment and integrated industrial system work by Shree Jay Ambe Fabrication.

28 project photographs

Project gallery

Equipment Built for Real Industrial Requirements

Every image in this gallery is a client-provided project photograph, not a generated representation.

Wide workshop view of two industrial equipment trains with hopper units, cylindrical vessels, ducting and a central stack — Integrated systemsIntegrated APCS Workshop Overview

Tall wet scrubber and industrial stack connected by ducting between hopper-bottom filtration units — Pollution controlScrubber, Stack and APCS Ducting

Rotary furnace installation connected by industrial ducting to a cooling chamber — Rotary furnaceRotary Furnace and Cooling Chamber

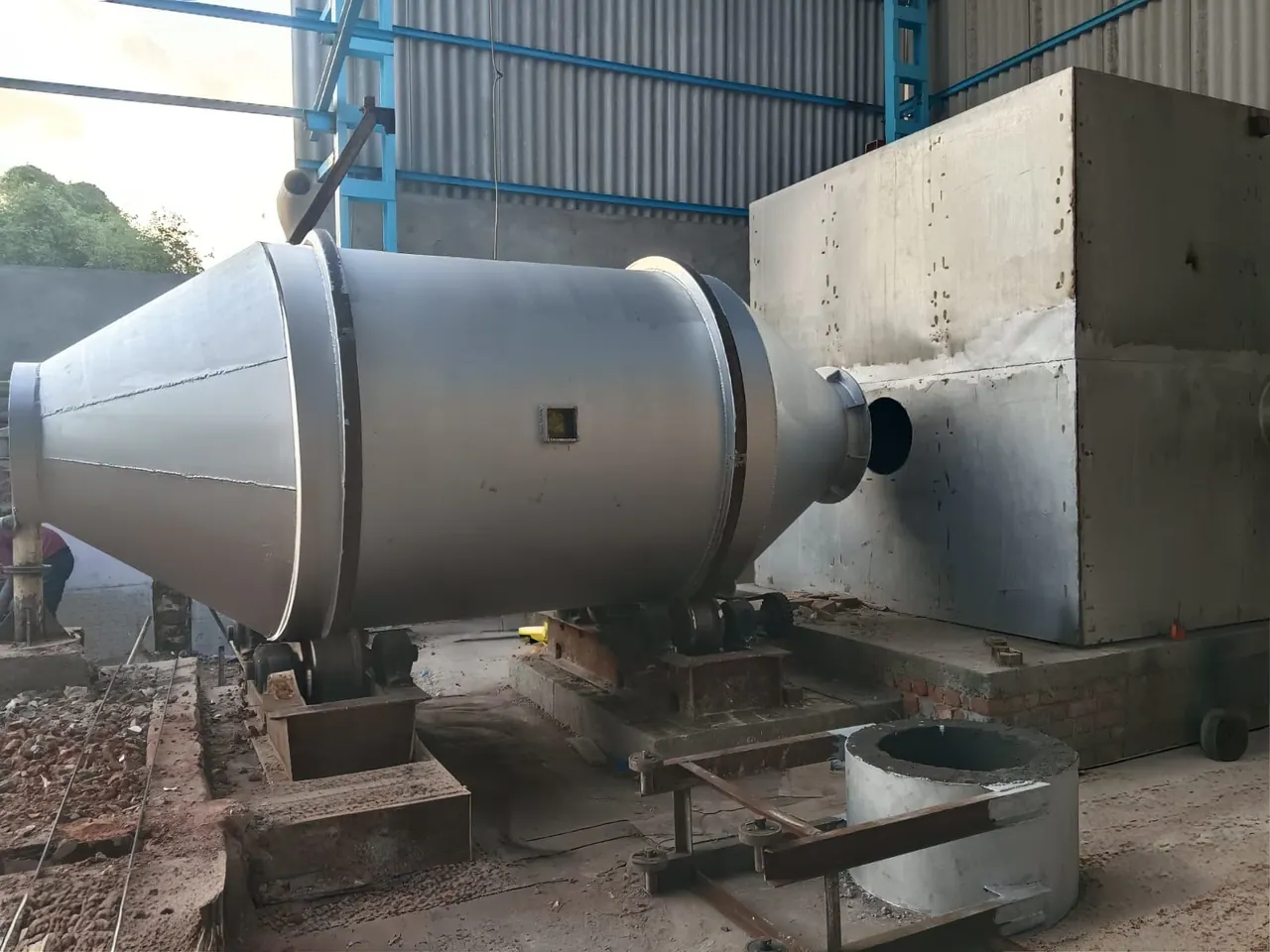

Side view of a fabricated three-ton rotary furnace connected to a large rectangular chamber — Rotary furnace3-Ton Rotary Furnace Installation

Driven chain conveyor carrying repeated metal moulds with its shaft and counterweighted mechanism visible — Casting machineryIngot Mould Conveyor Machine

Open cylindrical process vessel with a central agitator, overhead belt drive, extraction hood and connected ducting — Process equipmentAgitated Process Vessel and Fume Hood

Installed battery processing line with conveyors and connected scrubber and bag-filter equipment — Battery processingBattery Breaking Unit and APCS

Front view of a fabricated pulse jet bag-filter housing with hopper base and top-mounted valve manifold — Pollution controlPulse Jet Bag Filter

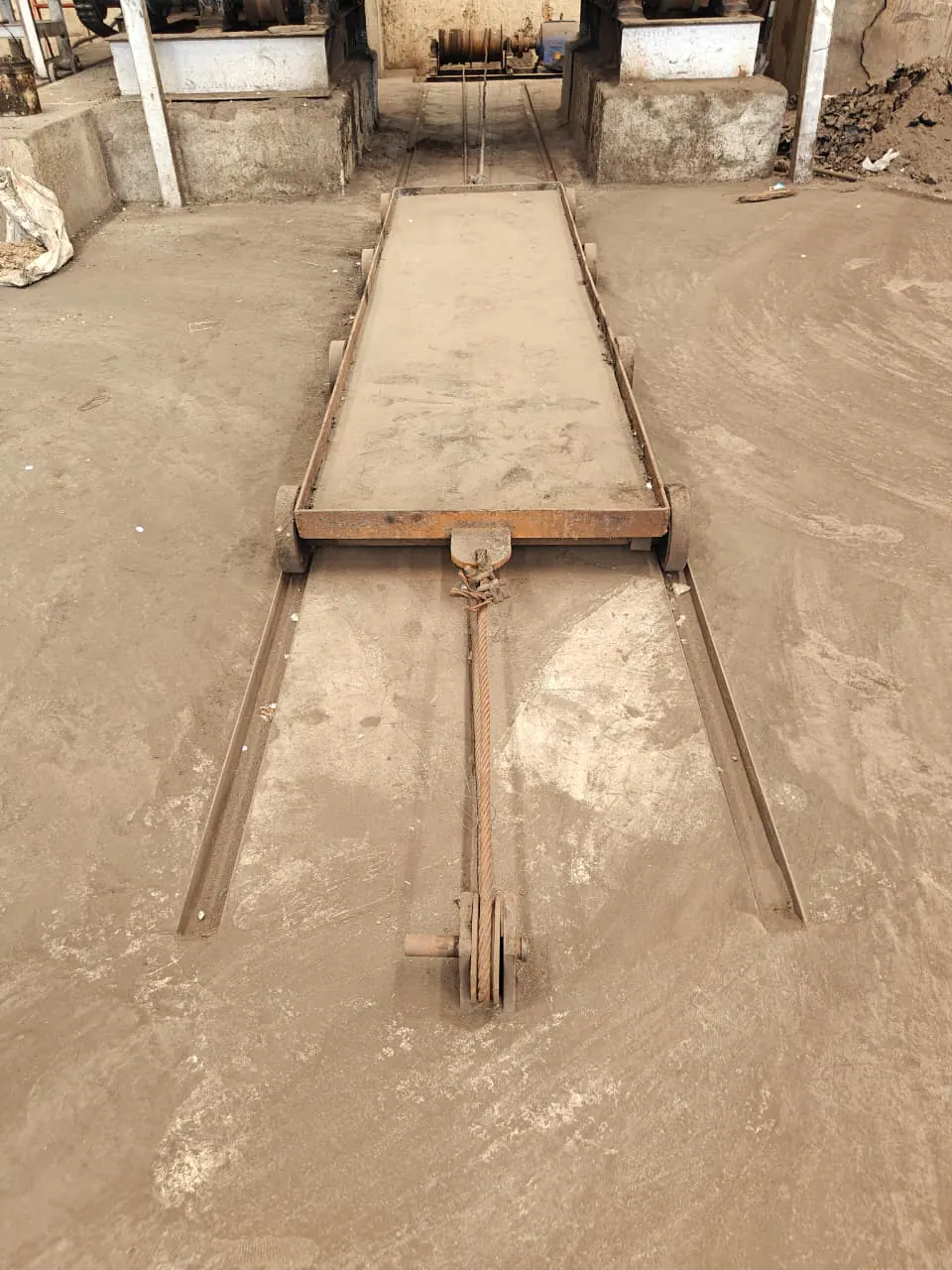

Flat industrial material trolley positioned on floor rails with a wire-rope connection — Material handlingRail-Mounted Material Trolley

Two induced-draft fan housings installed beside large interconnected industrial ducts — Pollution controlDual ID Fans and Connected Ducting

Cyclone separator and hopper-bottom bag-filter housing joined by fabricated industrial ductwork — Pollution controlCyclone, Bag Filter and Ducting

Integrated pollution-control installation with bag-filter housing, wet scrubber, connecting ducts and industrial stack — Integrated systemsIntegrated Bag Filter, Scrubber and Stack

Fabricated cooling chamber connected to multiple hopper-bottom dust-collection units and ducting — Integrated systemsCooling Chamber and Dust Collectors

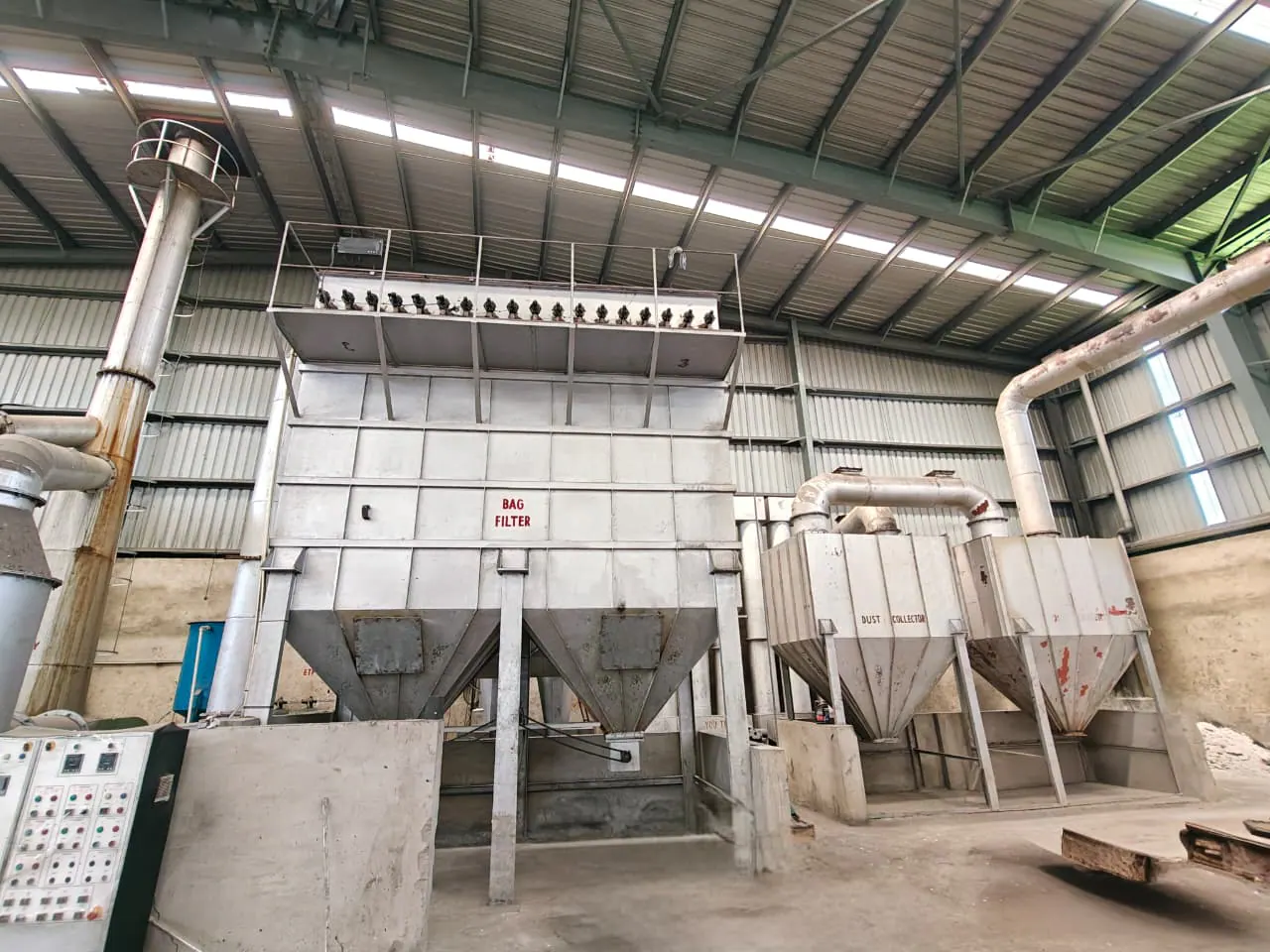

Installed bag-filter housing and dust-collector equipment connected within an industrial plant — Integrated systemsBag Filter and Dust Collectors

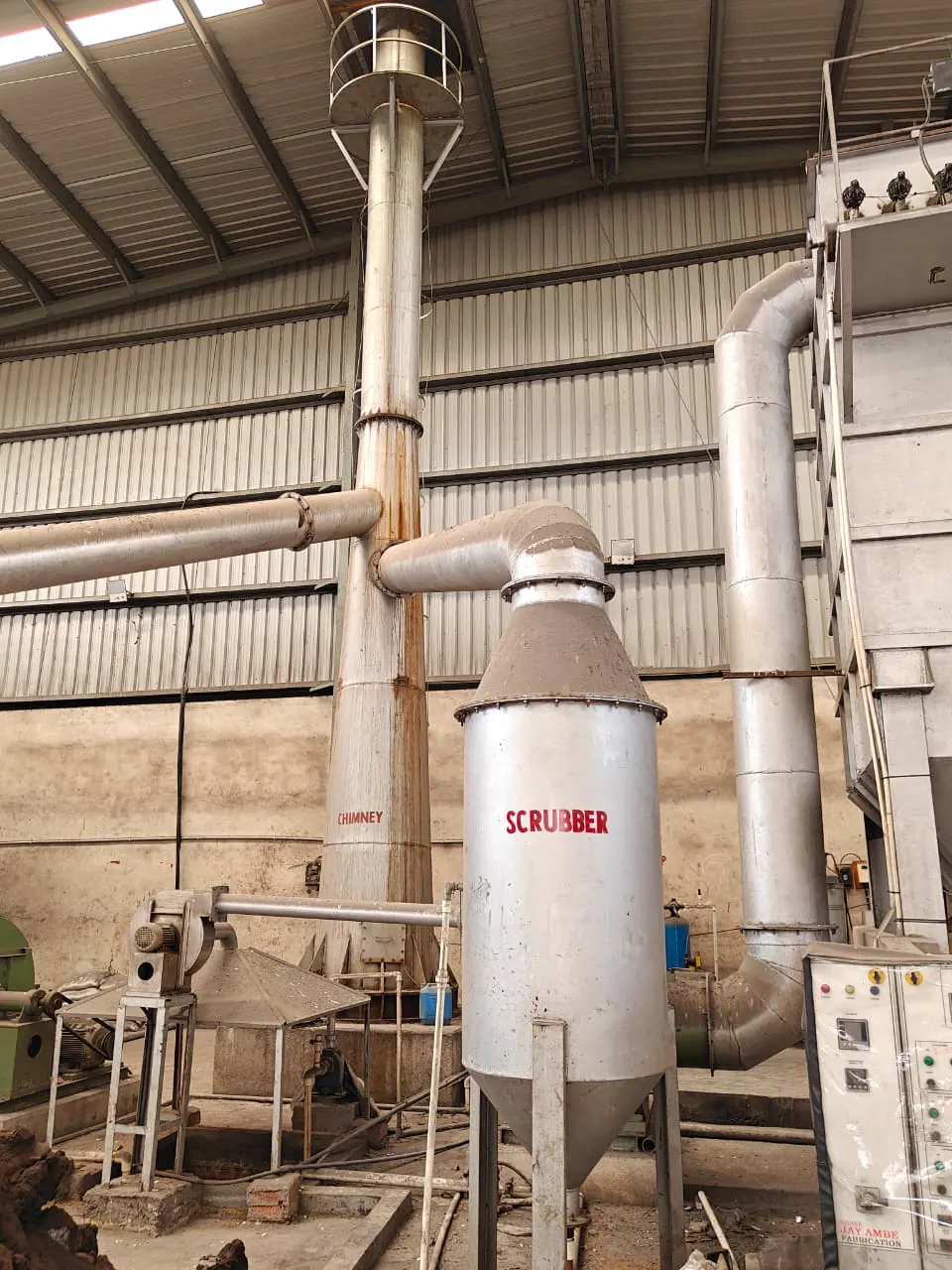

Portrait view of a wet scrubber, industrial chimney and induced-draft fan connected by pipework — Pollution controlWet Scrubber, Chimney and Fan Line

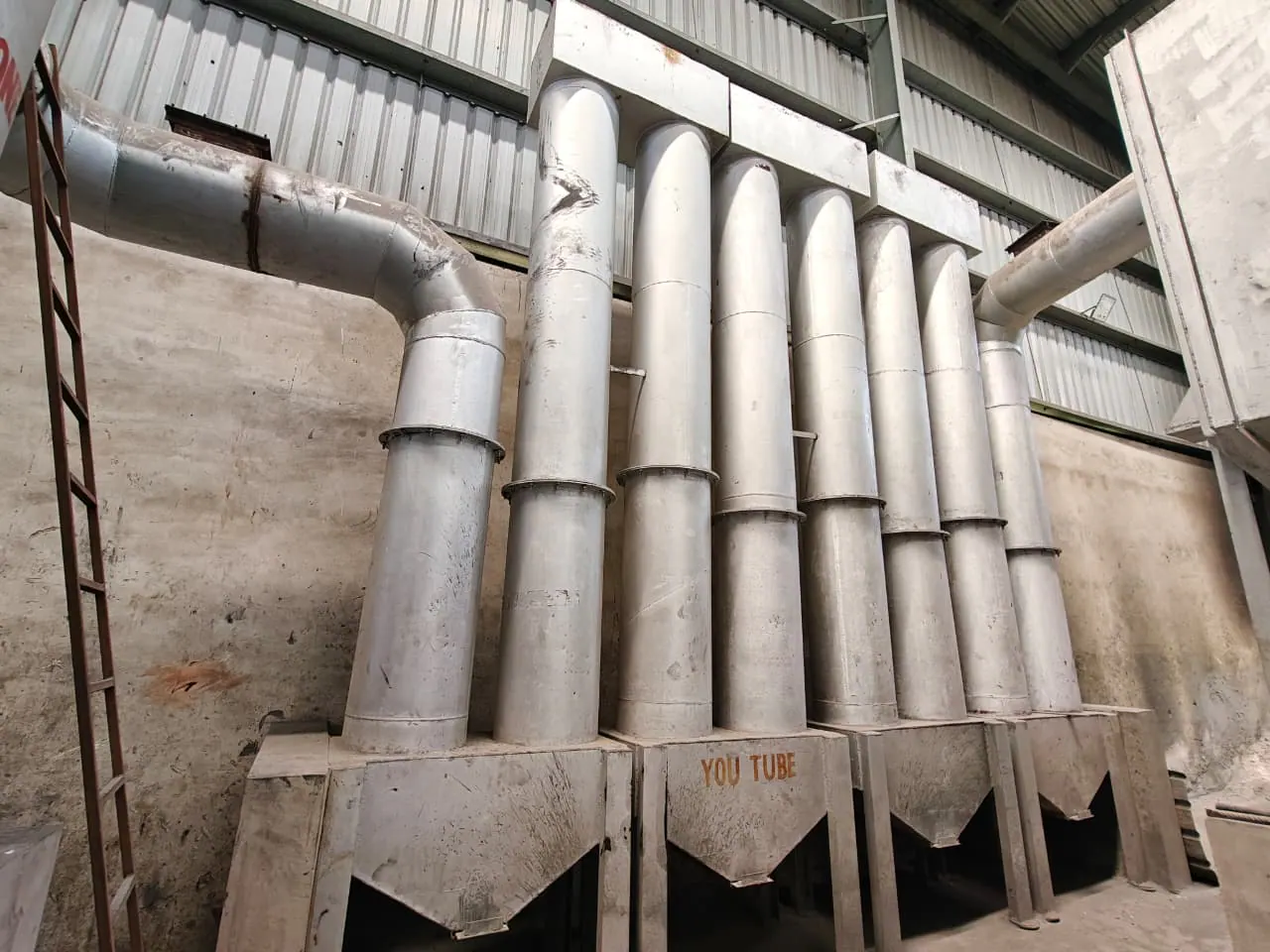

Bank of vertical separation tubes connected to common upper and lower fabricated manifolds — Pollution controlMulti-Tube Dust Separation Bank

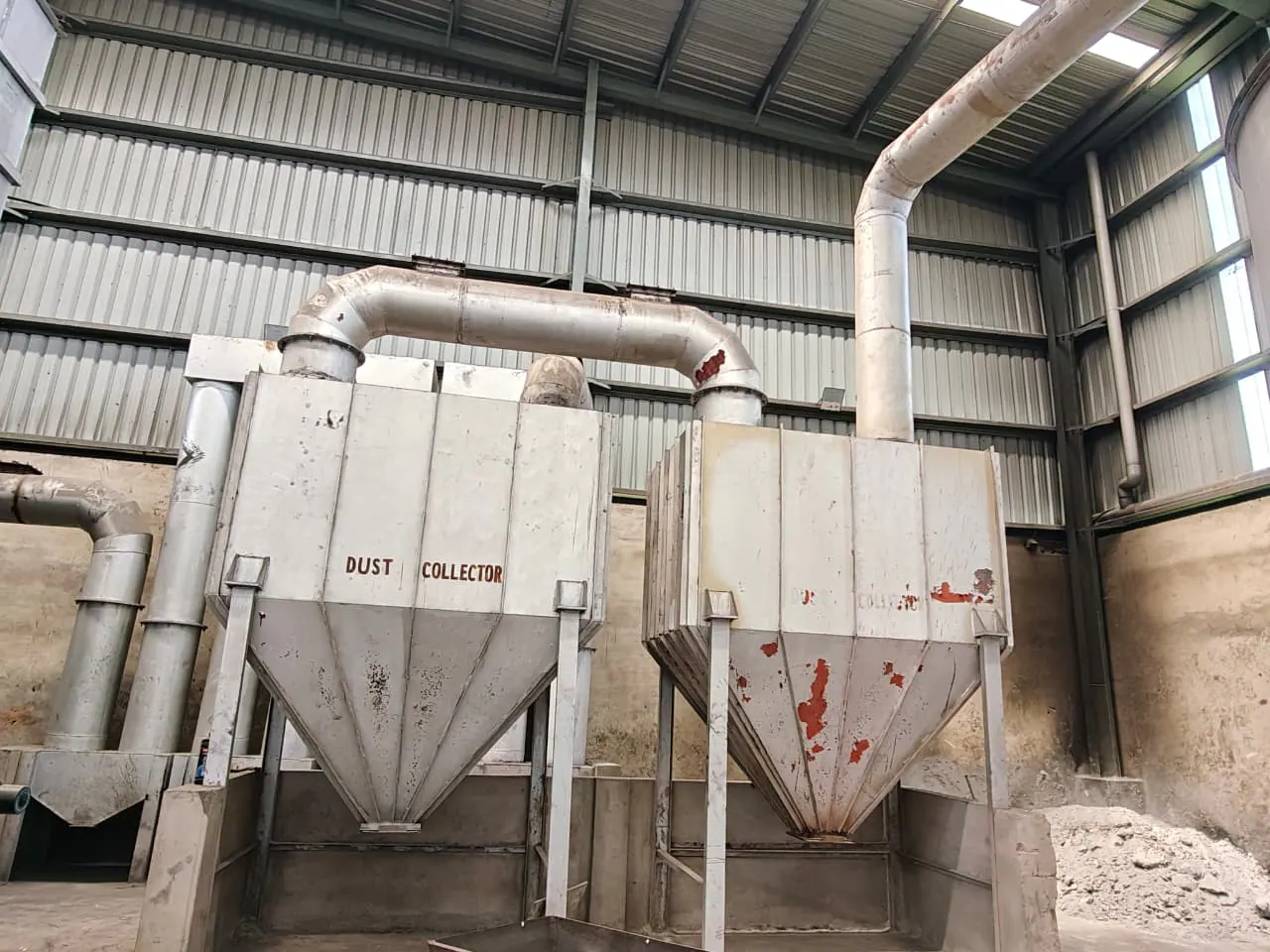

Two fabricated hopper-bottom dust-collector units installed side by side with connecting ductwork — Pollution controlTwin Dust-Collector Hoppers

Installed cyclone separator beside a hopper enclosure, vertical tube bank and connecting ductwork — Pollution controlCyclone, Ducting and Tube Bank

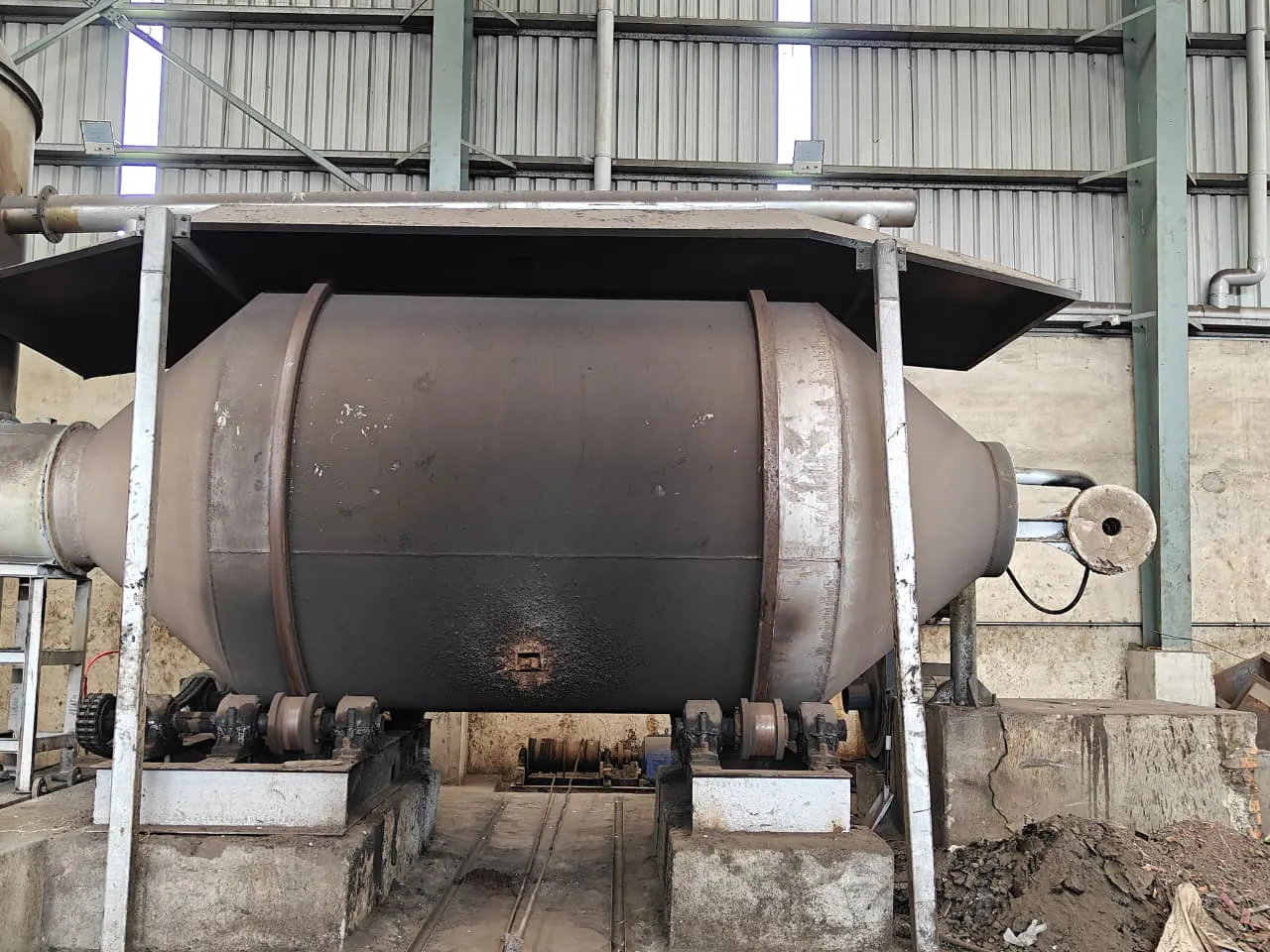

Front project view of a fabricated rotary furnace body and its supporting structure — Rotary furnaceRotary Furnace Project View

Two process vessels beneath extraction hoods with a foreground conveyor and pollution-control equipment — Integrated systemsProcess Vessels, Conveyor and APCS

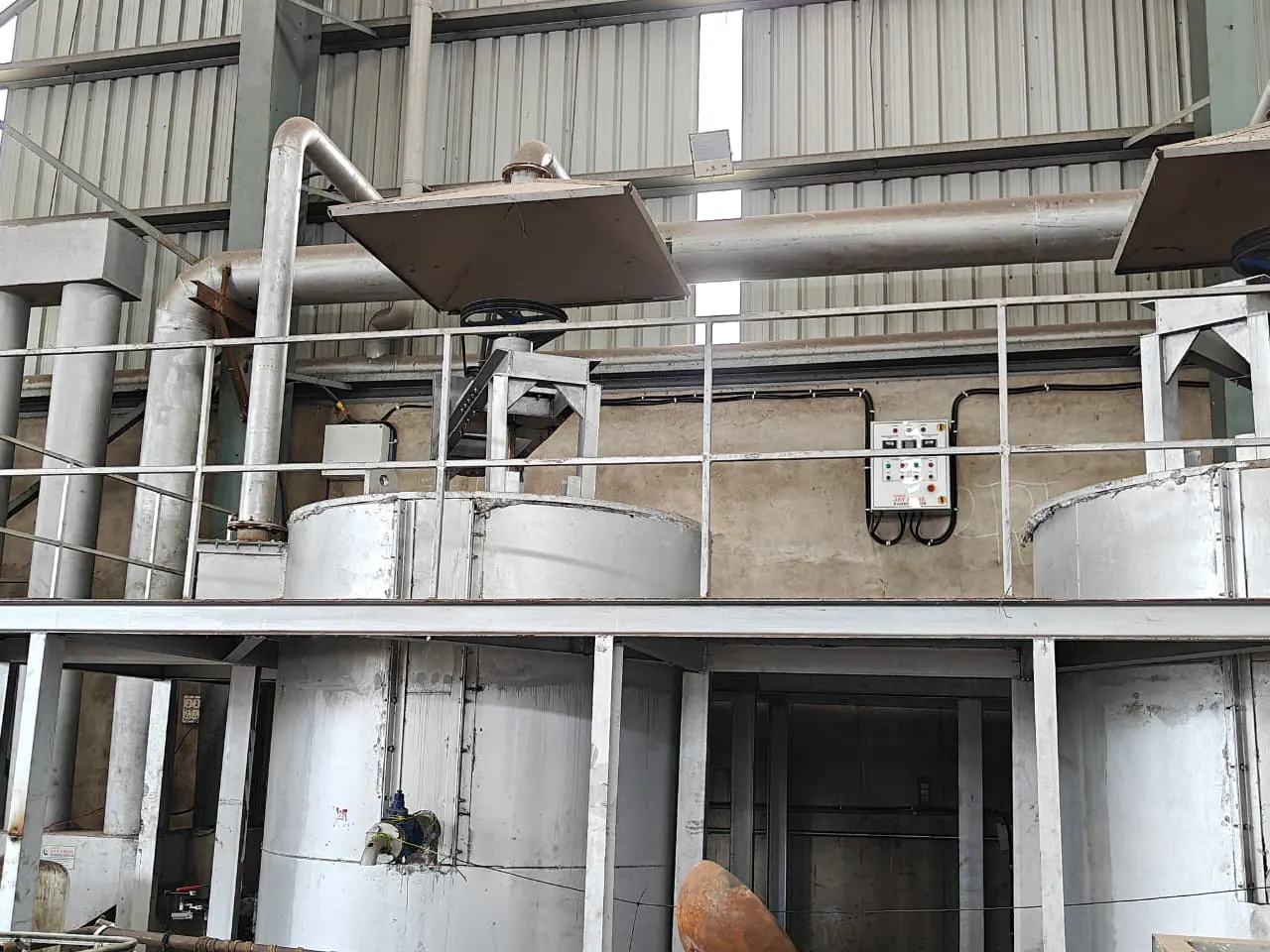

Process vessel beneath an extraction hood and belt drive with a nearby control panel and overhead duct — Process equipmentProcess Vessel Hood and Control Panel

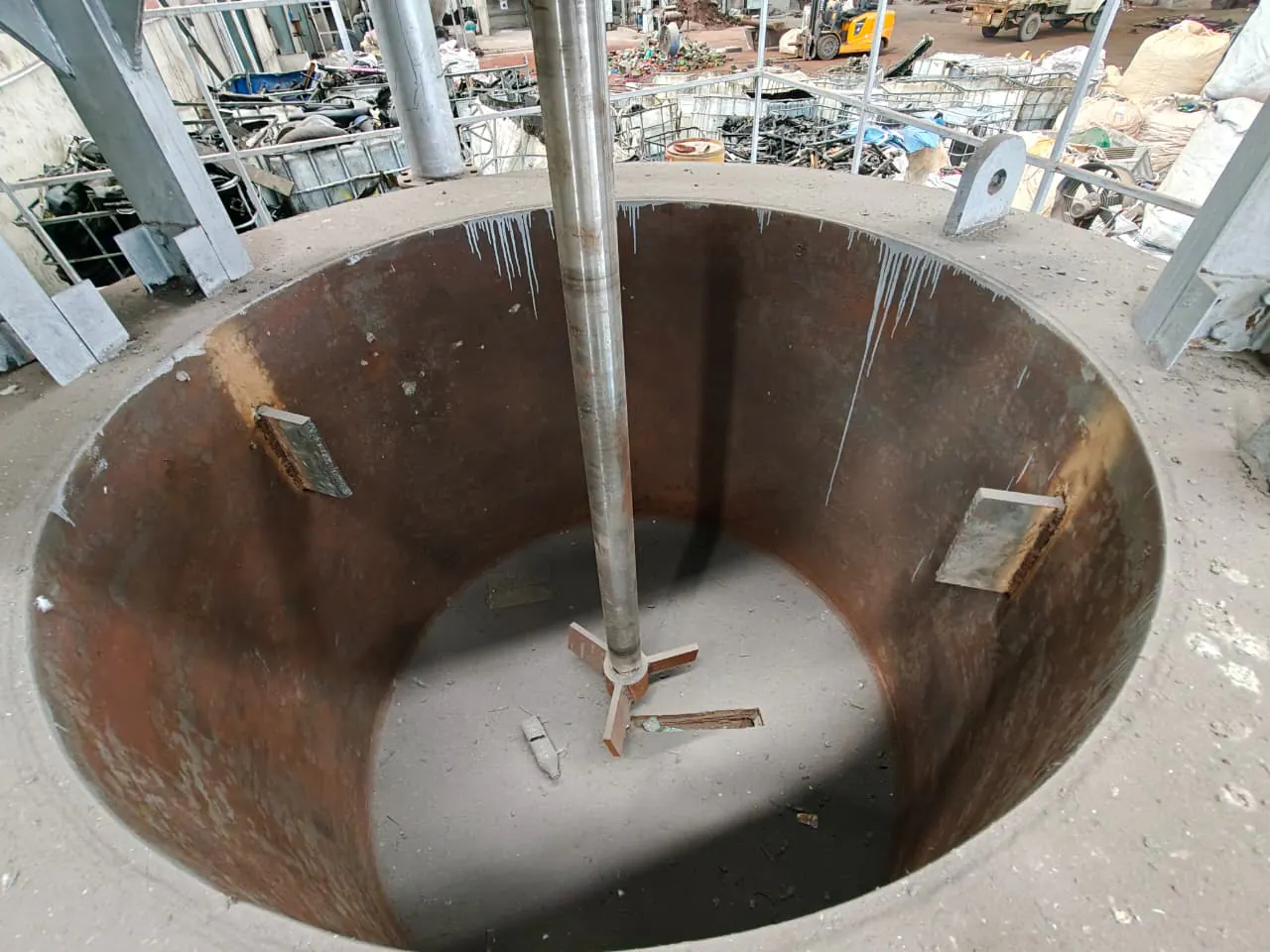

Top-down view inside a cylindrical steel vessel showing its central agitator shaft, paddle and wall baffles — Process equipmentProcess Vessel Agitator Interior

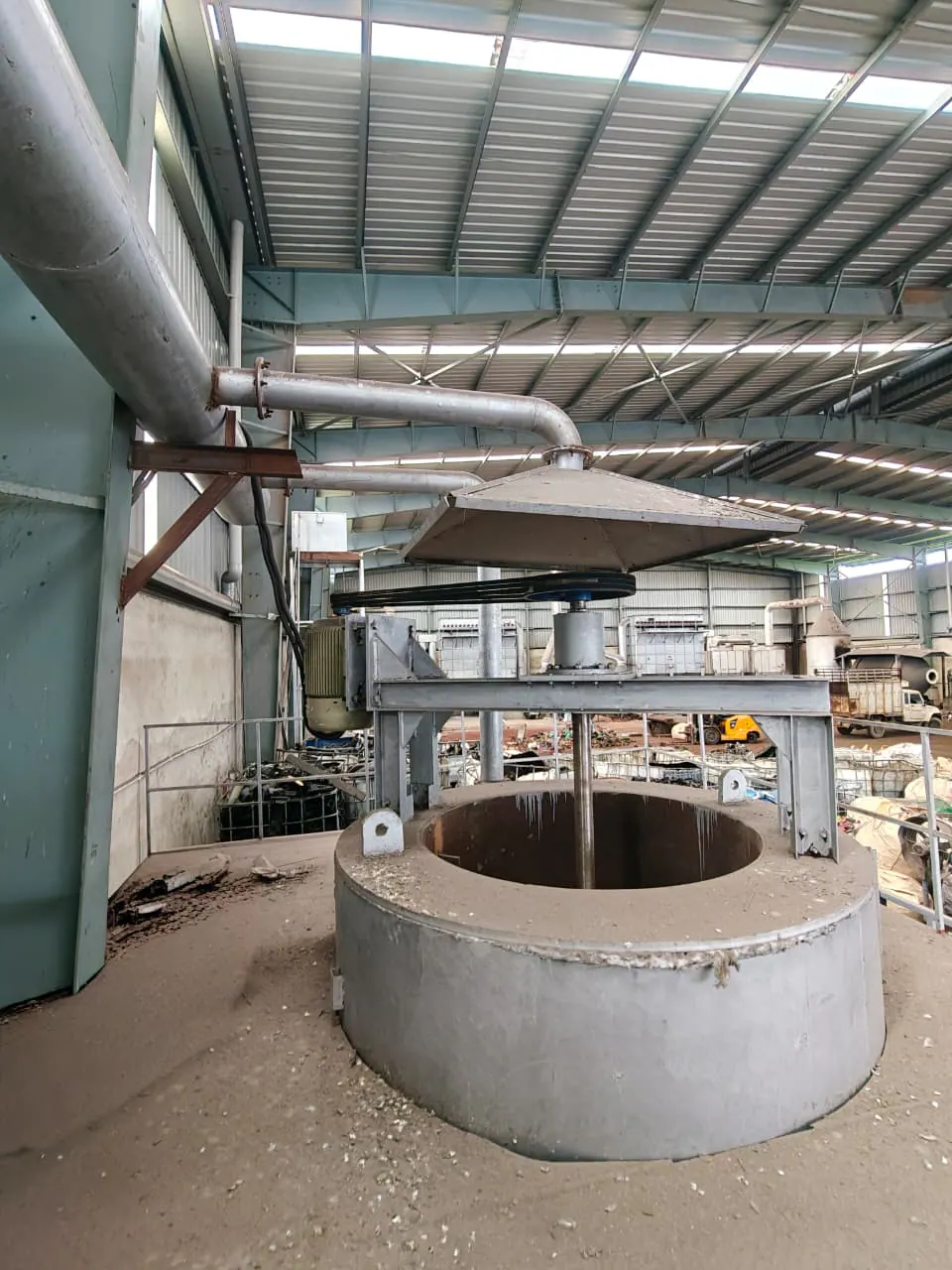

Portrait view of an agitated cylindrical vessel with an overhead extraction hood, belt drive and ducting — Process equipmentAgitated Vessel Extraction System

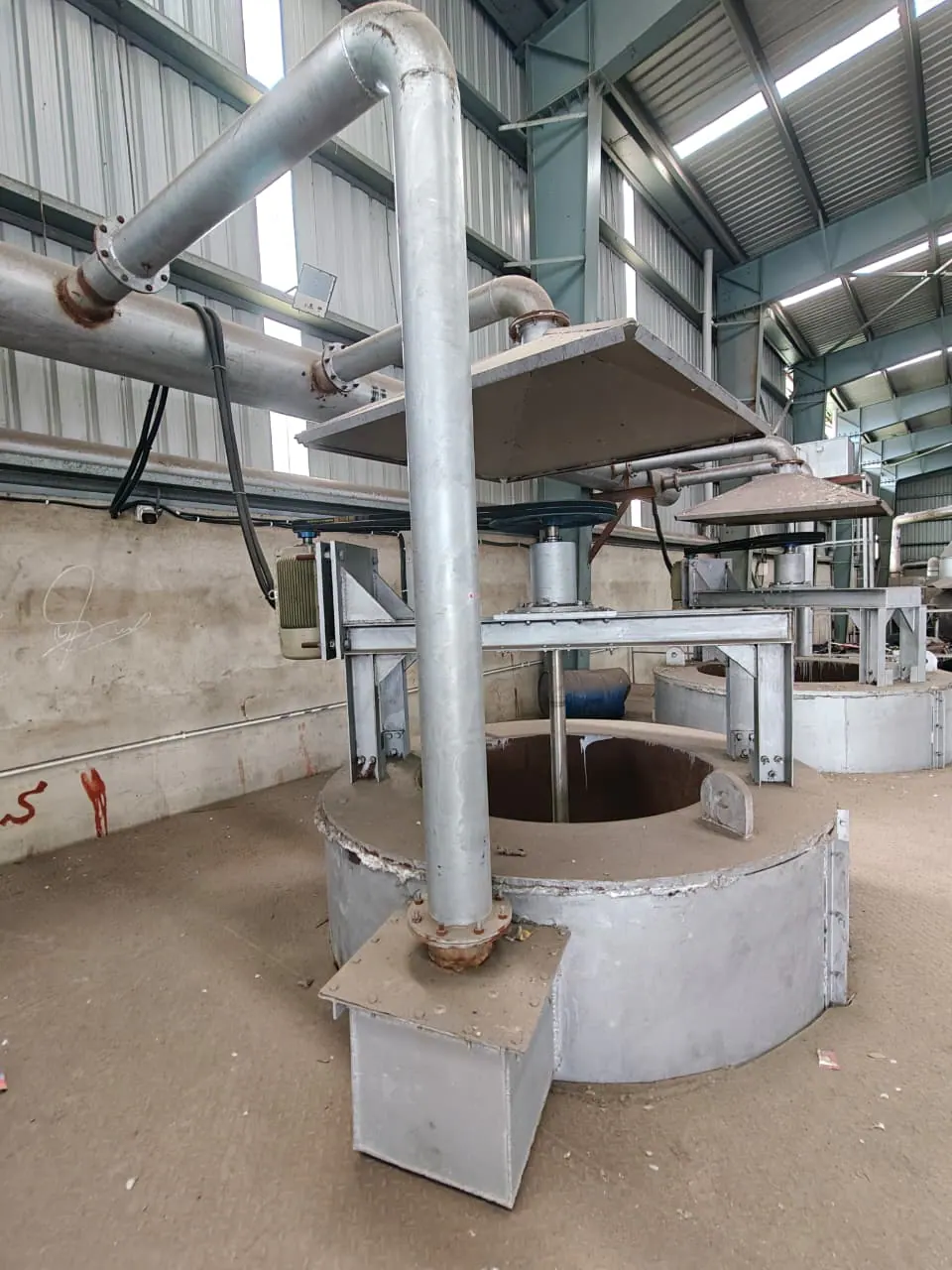

Two agitated cylindrical vessels arranged in sequence beneath extraction hoods and shared ductwork — Process equipmentDual Agitated Vessel Extraction Line

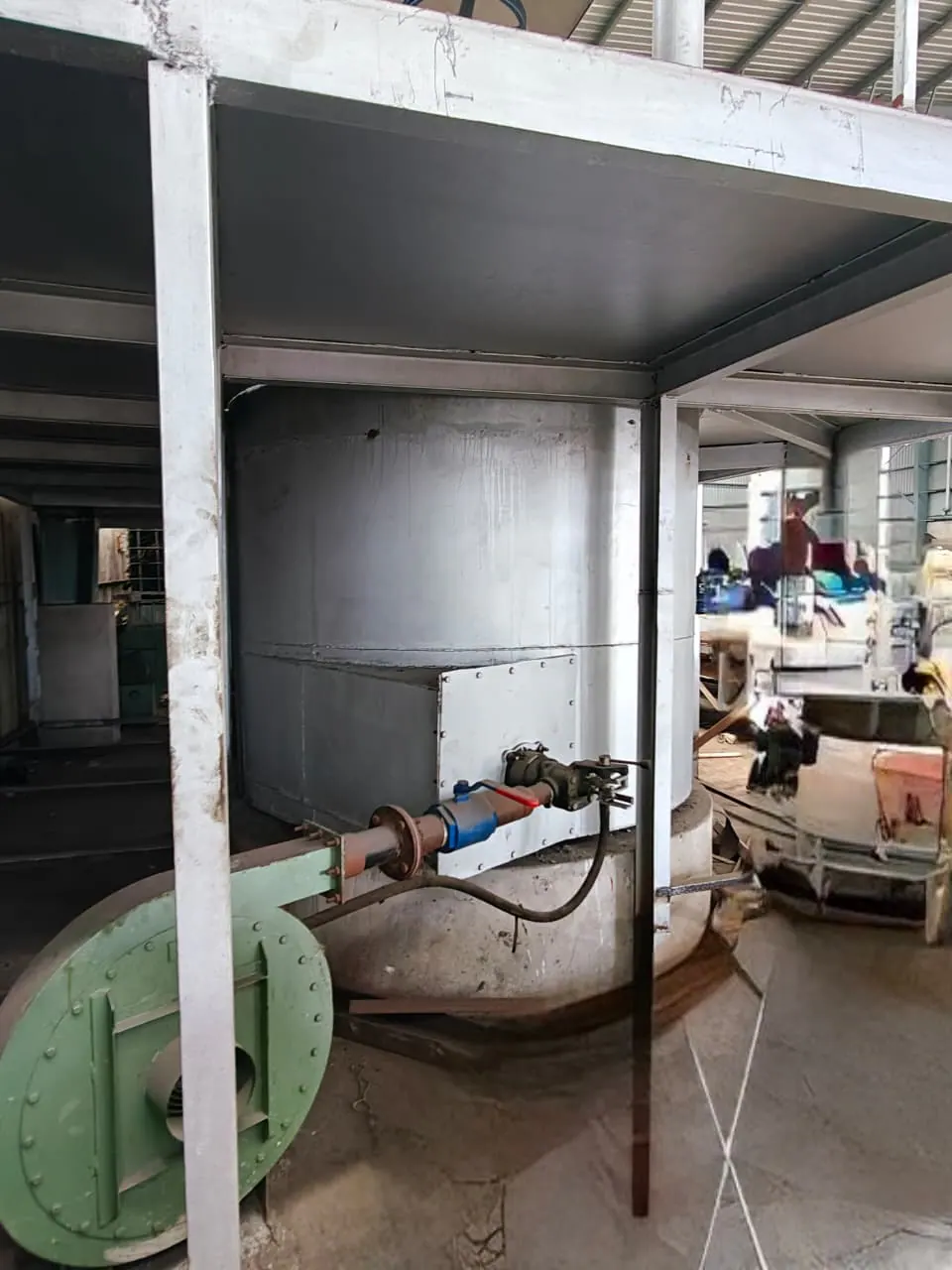

Close project view of a burner assembly entering the side of a cylindrical process vessel — Process equipmentBurner-Mounted Process Vessel Detail

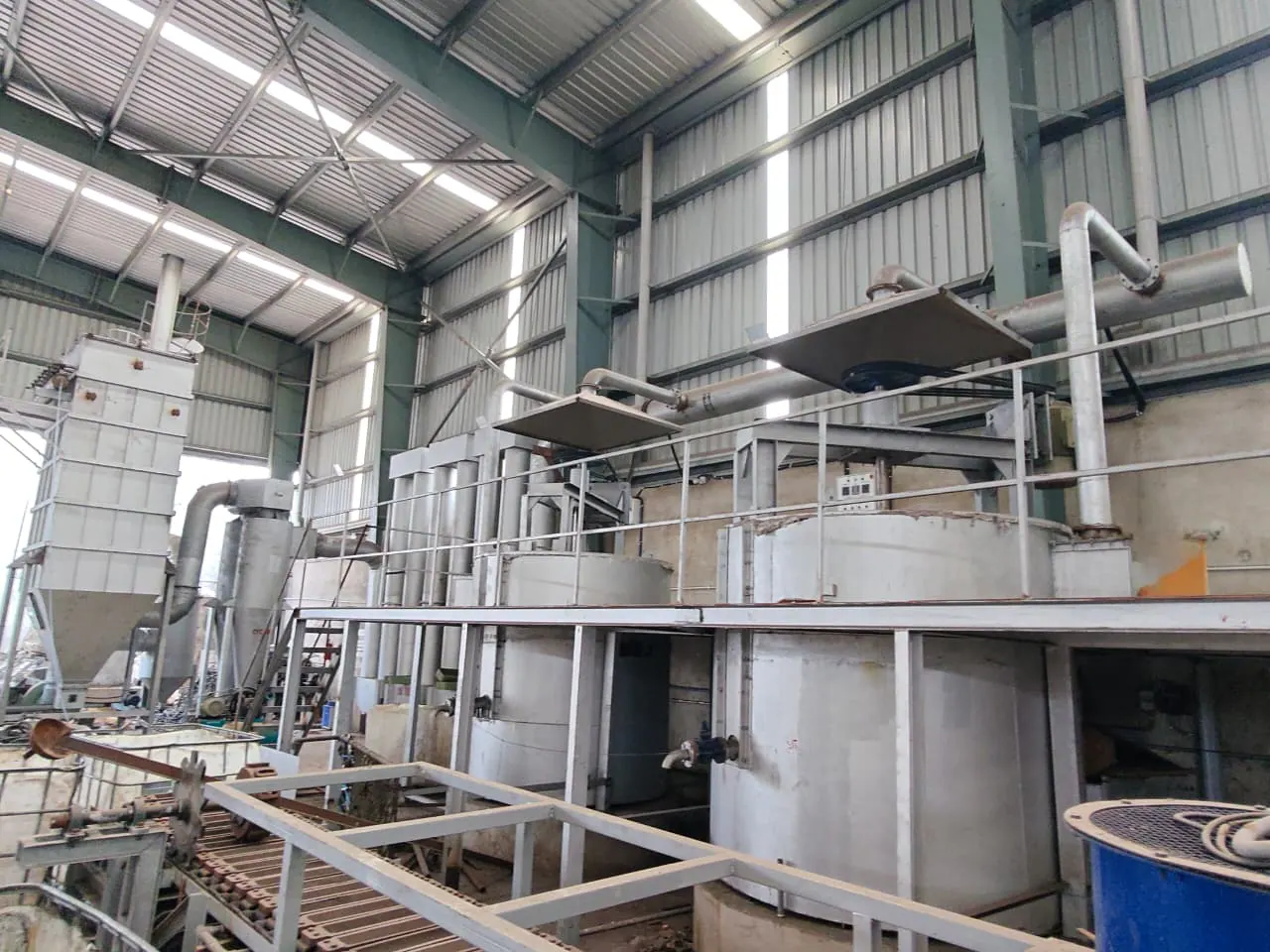

Two process vessels below a raised platform with extraction hoods, ducts, a conveyor and pollution-control equipment — Integrated systemsDual Process Vessels and APCS Line

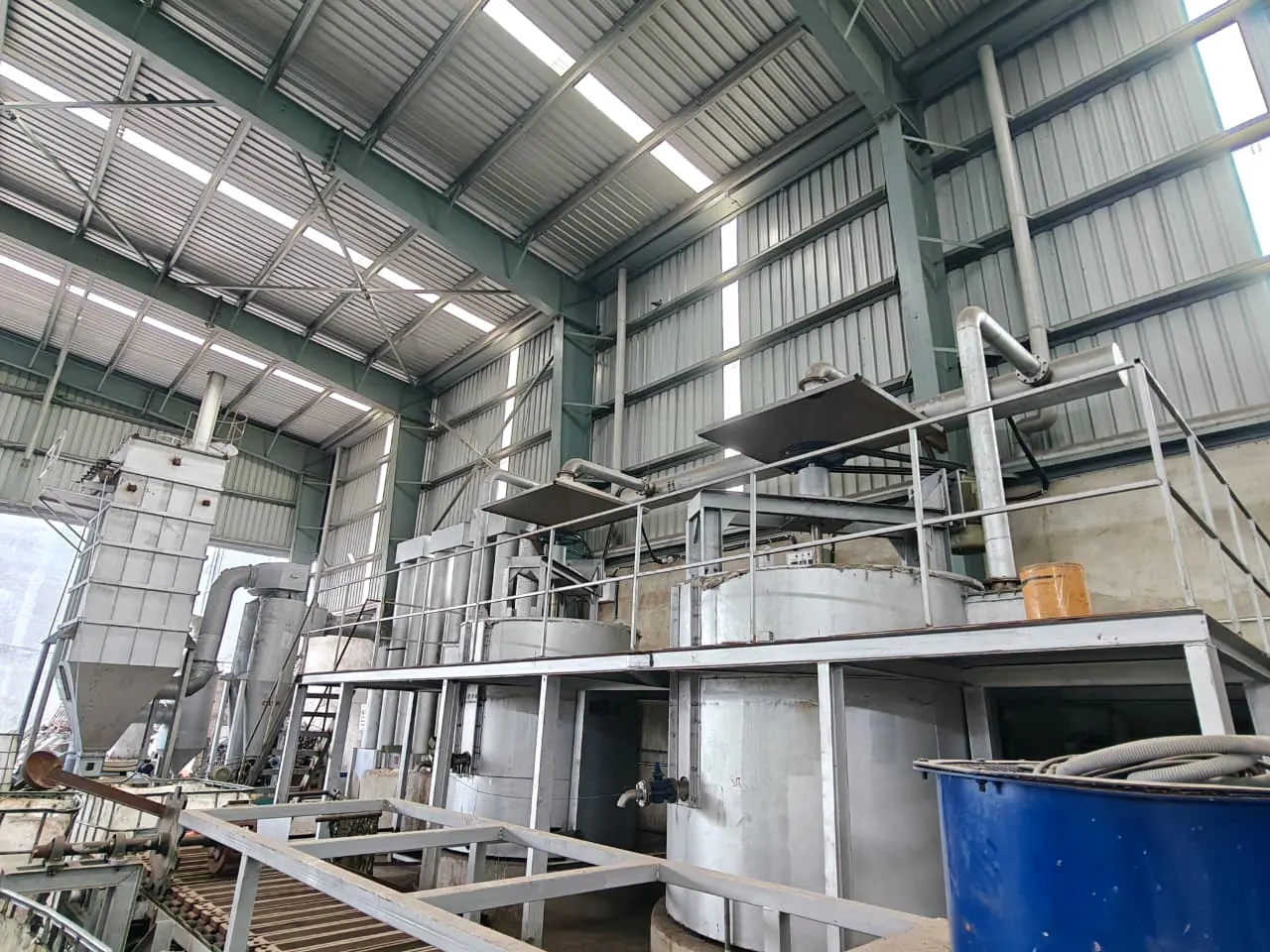

Wide workshop view of two process vessels, extraction hoods, platform, ducting and conveyor structure — Integrated systemsIntegrated Process Vessel Line

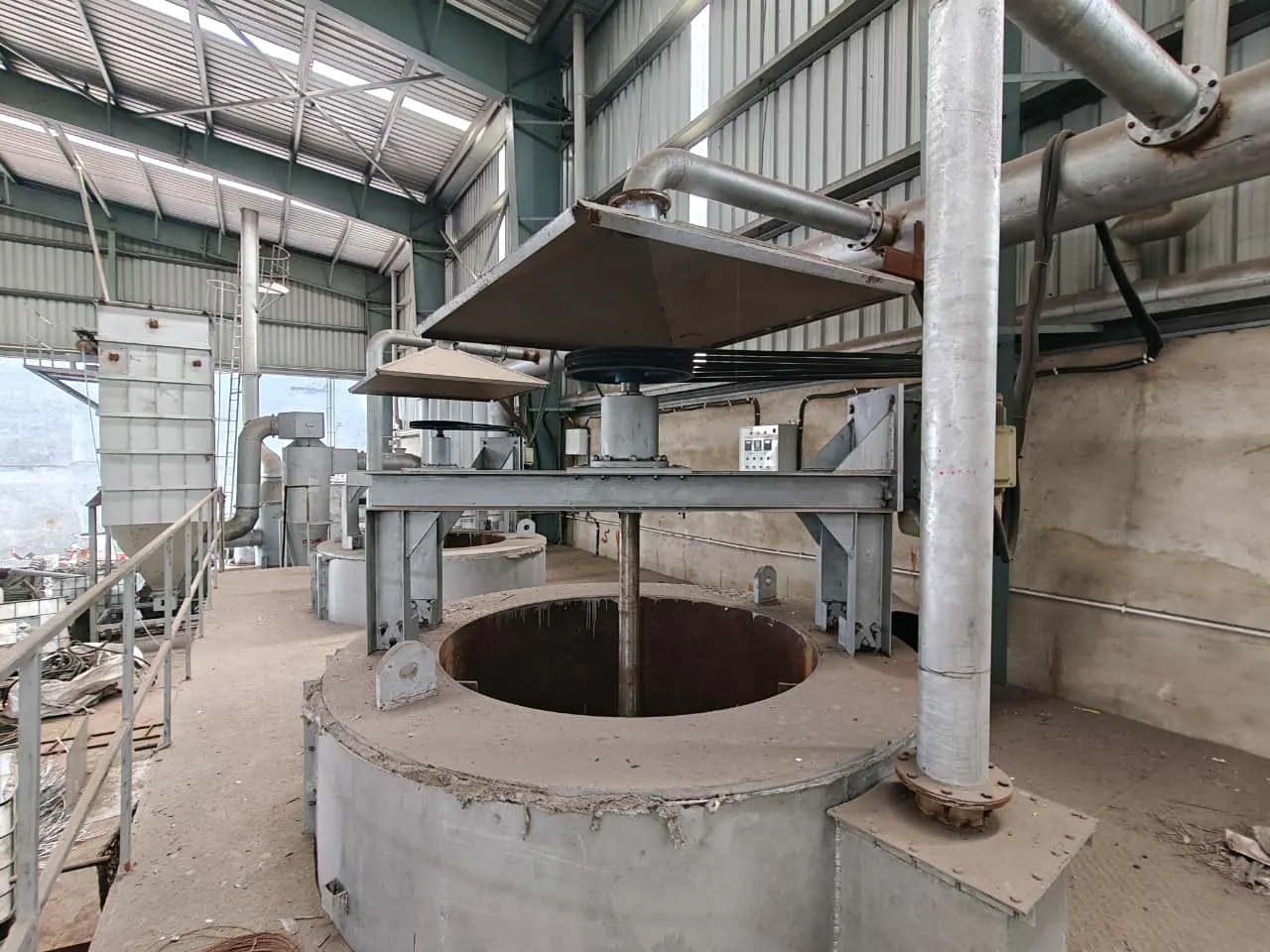

Alternate view of an open agitated process vessel beneath a square extraction hood and belt drive — Process equipmentAgitated Process Vessel, Alternate View

Your next project

Need Similar Equipment or a Custom Configuration?

Share your machinery, capacity and site requirements for a focused discussion.

Discuss a Requirement
